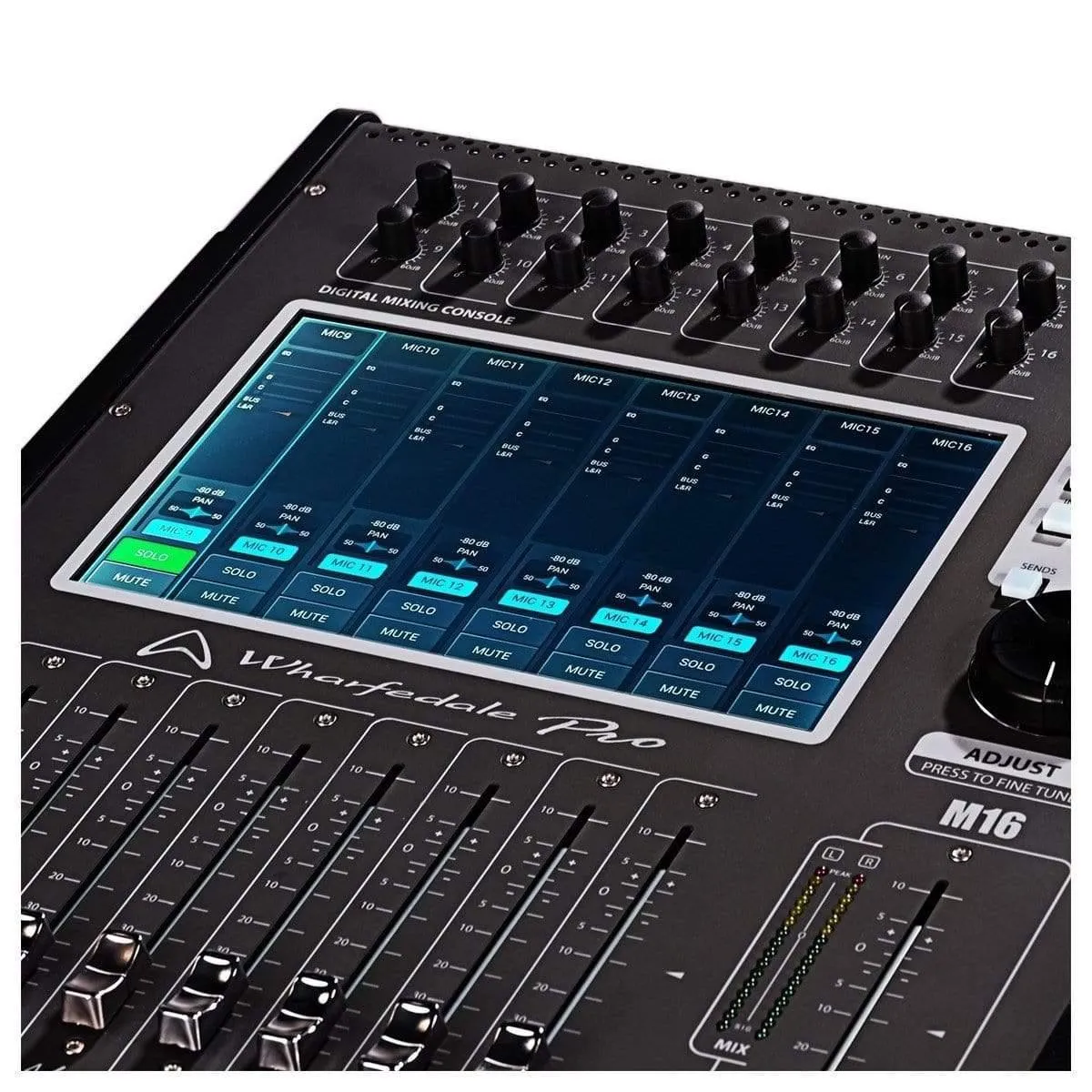

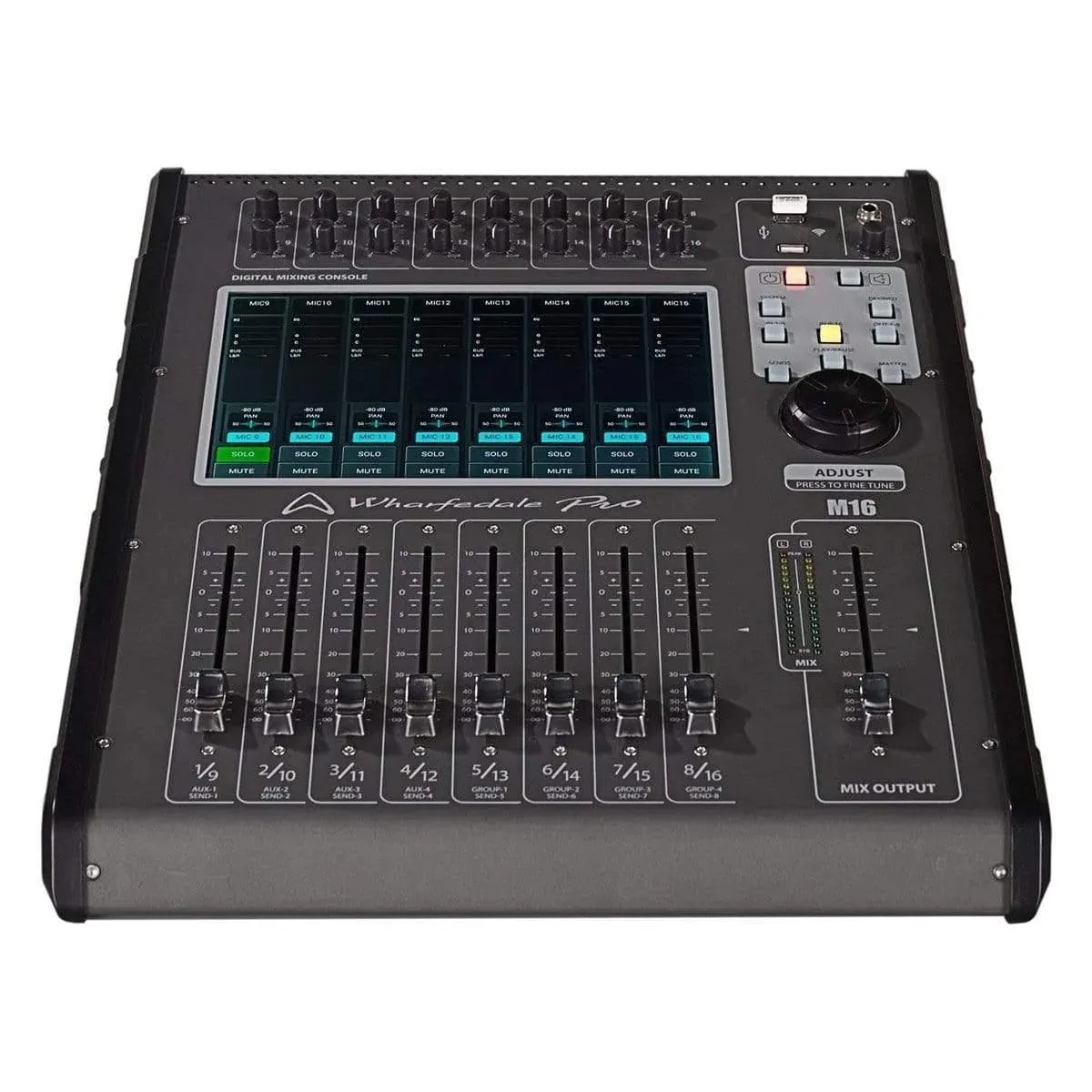

M16 is a unique and innovative multi-function digital mixing console, with many advantages such as its small size, lightweight construction, high-quality audio path, user-friendly interface and a ‘class-leading’ premium touch-sensitive 10.1” screen.
Using the 4th generation industrial floating-point SHARC processor and 24bit / 192kHz AD/DA conversion, M16 delivers high-quality audio with a responsive feel.
The custom layer, channel link and mute group modes make it ideal for live performances, conferences, schools, churches, cultural auditoriums, weddings, concerts, homes, bands, multi-purpose halls and other sound reinforcement systems.

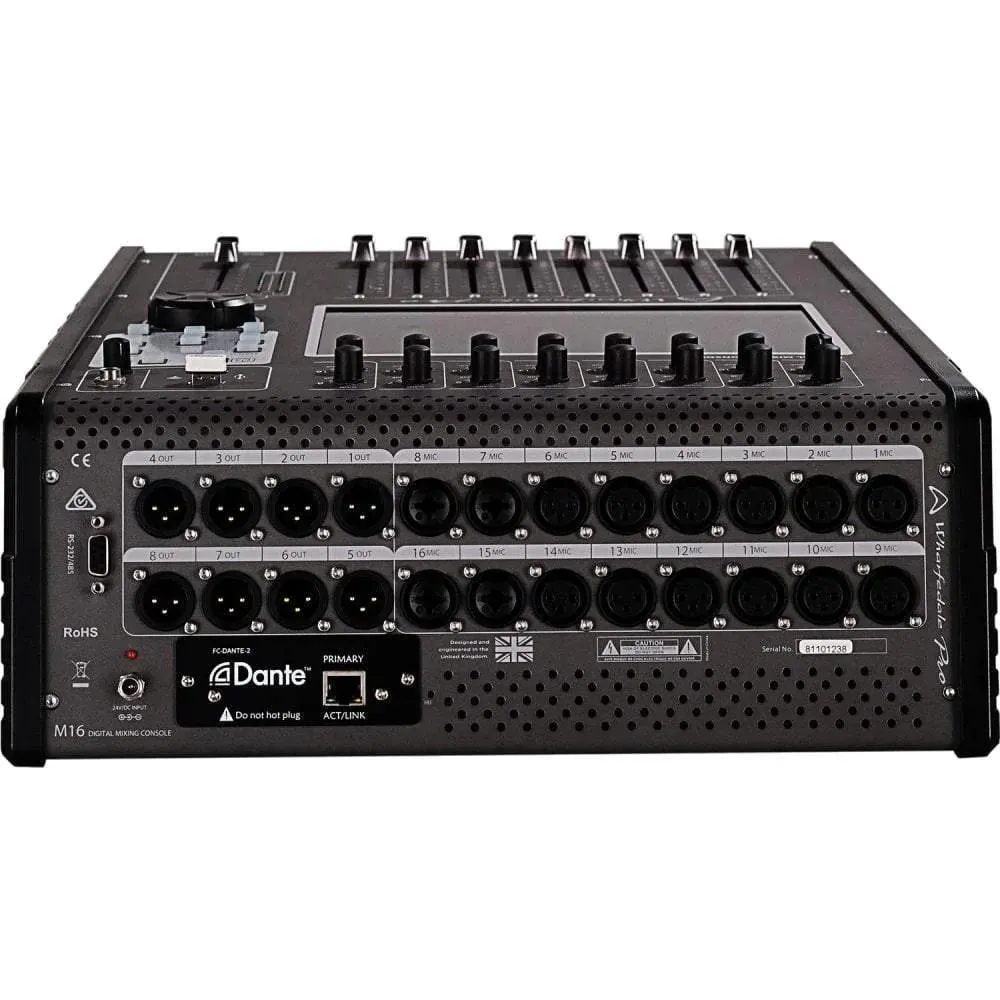

The system also includes WiFi interfacing allowing the mixer to be controlled remotely with mobile devices. A rear-panel expansion bay also allows for optional interface boards to be inserted. Currently, these include Dante, AES/EBU and USB protocols.
The 9 x 100mm motorised faders make control simple and custom layers can be created to make M16 easy to use for the most inexperienced operator.
Features
- 16 inputs (12 x XLR / 4 x combi-jack)
- 8 assignable balanced outputs
- 10.1” touch screen | 1280 x 800 resolution
- Expansion bay for optional interfacing
- 8 internal DSP processors
- 9 x 100mm motorised faders
- WiFi connectivity & control. Dongle included
- iPAD app for complete remote control
- Optional flight case also available
| Model Name M16 |
| Mic inputs 16 channel inputs (balanced) |
| Mic input connectors 12 x XLR 4 combi connectors |
| Impedance 3kΩ |
| Frequency response 20Hz - 20kHz ( /-0.5dB) |
| Max input level 20dBu (balanced) |
| S/N ratio 105dB |
| Gain range 60dB |
| THD 0.005% |
| Phantom power 48v (Chan 1 to 16) |
| LIne inputs 4 x combo inputs |
| Input impedance 20kΩ |
| Max input level 30dBu (balanced) |
| Frequency response 20Hz - 20kHz ( /-0.5dB) |
| THD 0.008% |
| Gain range 60dB |
| S/N Ratio 105dB |
| Phase Normal / Reverse |
| Delay 0 -200msec |
| EQ 4-band |
| Frequency 20Hz - 20kHz /-18dB |
| Q = 0.5 to 10.0 |
| HPF, Low, Mid/Low, Hi Mid, High |
| Mode Bypass, Flat, Library |
| GATE Threshold -80dB to 0dB |
| Attack 0.5ms to 100ms |
| Release 2ms to 2s |
| Hold 2ms to 2s |
| Depth -80dB to 0dB |
| Compressor Threshold -80dB to 0dB |
| Attack 0.5ms to 100ms |
| Release 2ms to 2s |
| Gain -12dB to 12dB |
| Ratio 1.0 to 20 |
| Outputs 8 assignable XLR |
| L/R 4 Mono buss 2 stereo buss |
| THD 0.005% (20Hz-20kHz) |
| Max output level 18dBu |
| Output impedance 470Ω |
| Digital IO USB stereo input and REC function |
| USB format 2.0 |
| USB Max Memory capacity 32GB |
| I/O latency <1.8ms |
| Recording format .wav |
| General |
| Dynamic range 106dBu analog in to analog out. |
| Crosstalk -85dB |
| AD/DA convertor Up to 24bit / 192kHz |
| Signal processing 40-bit floating point |
| FX processing Modulation x 2, Delay x 2, Reverb x 2 |
| GEQ 2 x 31bands |
| Screen resolution 10.1" touchscreen. 1280 x 800 |
| Faders 100m x 9. Motorised |
| System Wifi external USB adaptor included |
| Hardware |
| Power supply External 24V DC (AC 90-240V 50/60Hz) |
| Power consumption 50w |
| Dimensions (DxWxH) 504 x 379 x 136mm |
| Net weight 8.5kg |
| Gross weight 10.5kg |
| Included accessories WiFi USB adaptor |
| Power supply / power cord |
