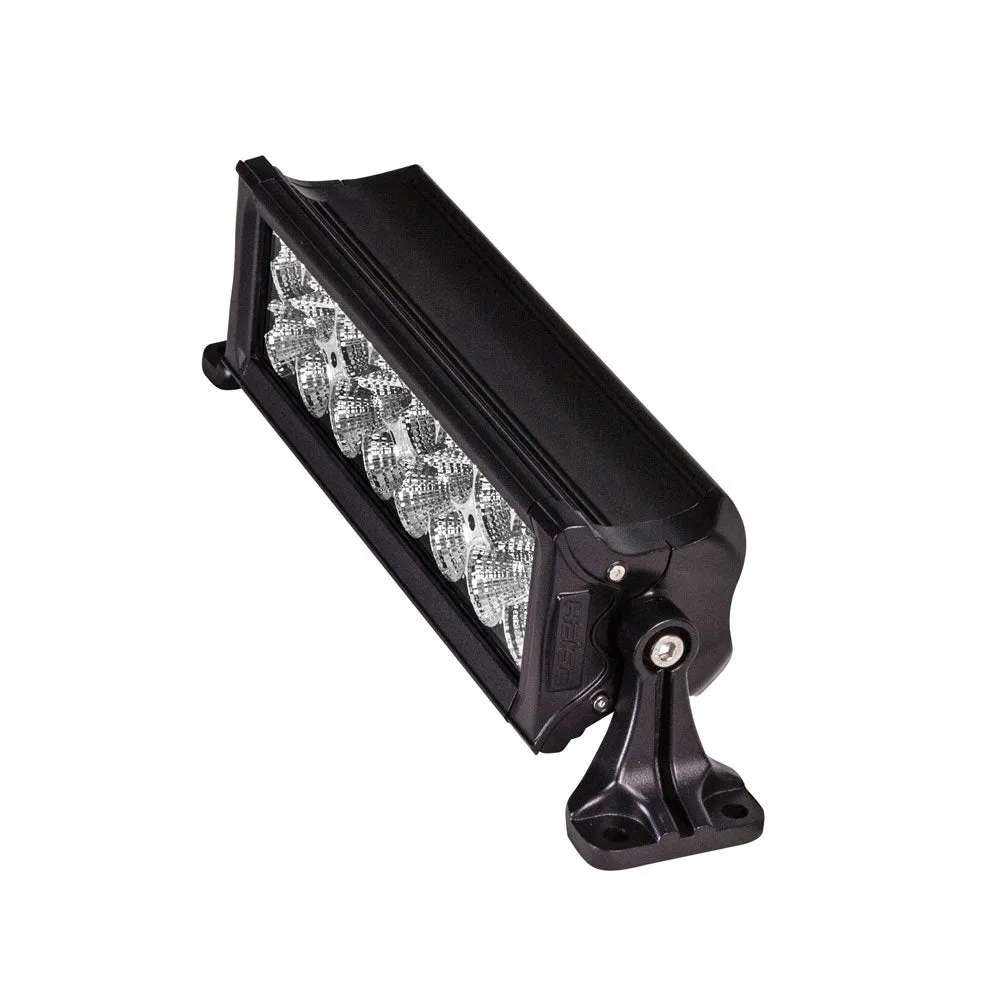

Triple Row LED Light Bar - 10"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 60W (20–3W OSRAM LEDs)
• Raw Lumens: 4800
• LUX @ 10M: 88
• Color Temperature: 6000K
• Beam Pattern: 90° Flood

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions:

• Brackets turned outward — 14"
• Mounting Bolt Drill – .25"
• Height of Light Bar Itself: 3.50"

• Depth of Light Bar Itself: 3.25"
• Length of Bar w/o Mounting Brackets: 11.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to 60°C
• Current Consumption: 3.2 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Beam Pattern: Flood
• Length (Inches): 10"
• Housing: Black
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 6"H x 6"W x 17"L WT: 5.2 lbs
• UPC: 086429313280
