Name: Haltech iC-7 Digital Dash
SKU: 107354

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.

DASH OVERVIEW

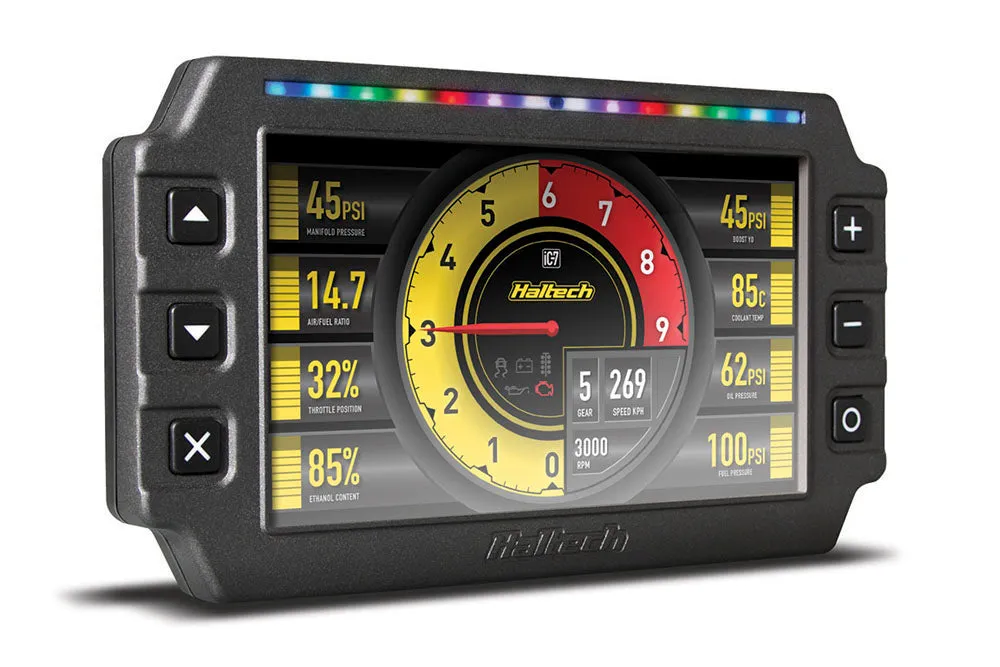

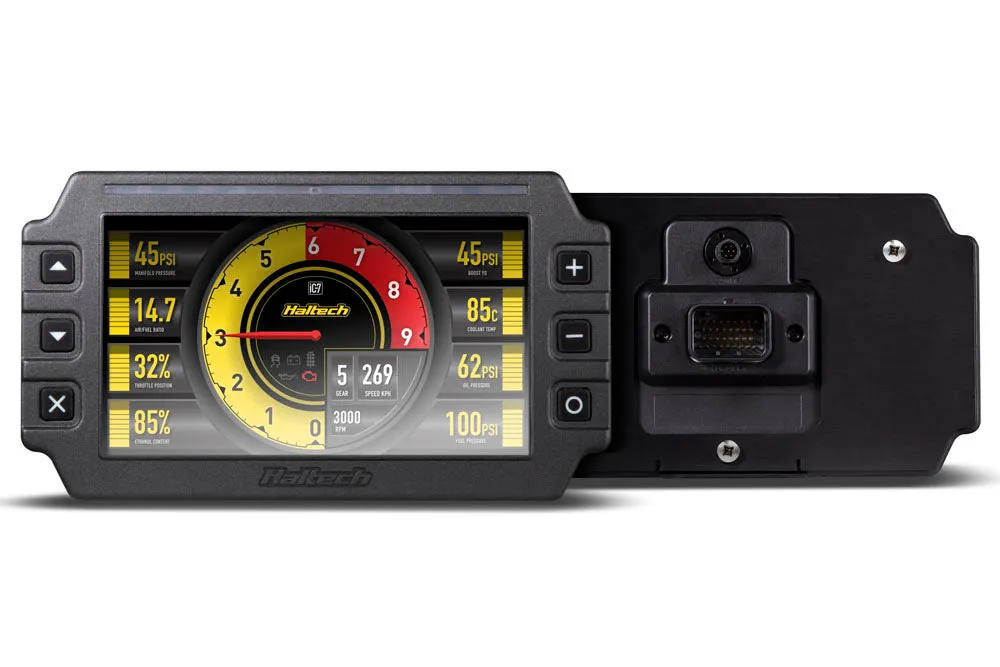

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

Ideal replacement for individual analogue gauge clusters.
Easy to install and configure.
User adjustable brightness control with automatic dimming.
User configurable channels, units and alarms.
User definable Inputs & Outputs
4 x Analog Voltage Inputs (AVI)
4 x Digital Pulsed Inputs (DPI)
4 x Digital Pulsed Outputs (DPO)
14 programmable, seven colour shift light LEDs.
On-board datalogging (512MB)
Controlled via easily accessible, face-mounted control buttons.
Configuration via Haltech software and USB cable.

CAN BUS Option
COMPATIBLE WITH: All currrent Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

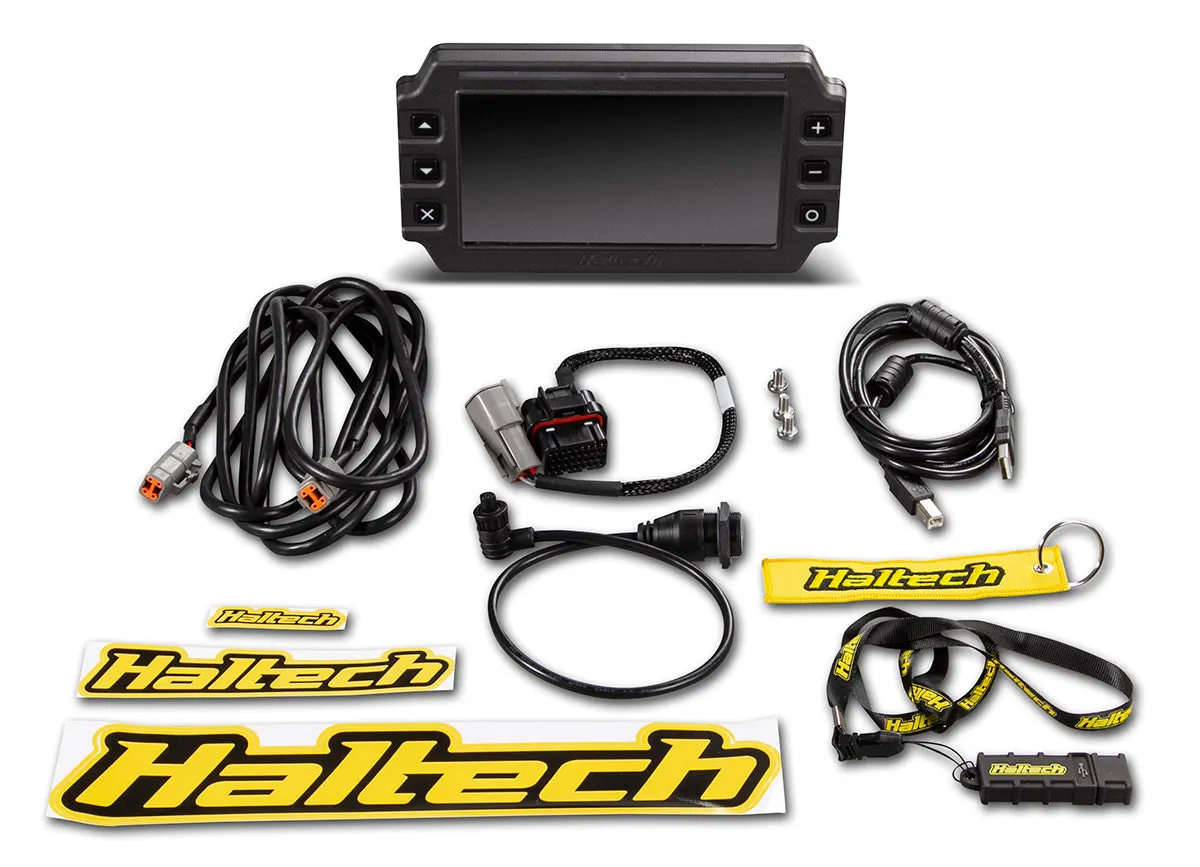

WHATS IN THE BOX: Haltech iC-7 Display Dash, 34 Pin main connector harness (including spare pins for input wiring), DTM-4 to DTM-4 CAN extension cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag

OBD-II Option
Suits: Preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.

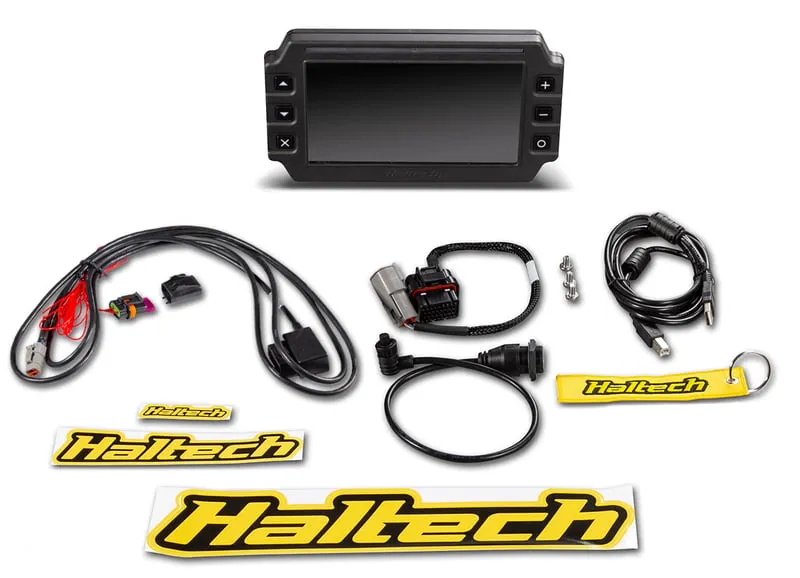

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (includes spare pins for input wiring), OBD-II to DTM-4 CAN cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag

Stand-Alone Kit Option

Suits: Perfect for old-school hot rods, mechanically injected muscle, carbureted classics and everything in between, the Haltech stand-alone IC-7 Classic kit is ideal for anyone looking to simplify and modernise their analogue gauge setup. Suits carbureted or mechanically injected vehicles and/or vehicles without an ECU.

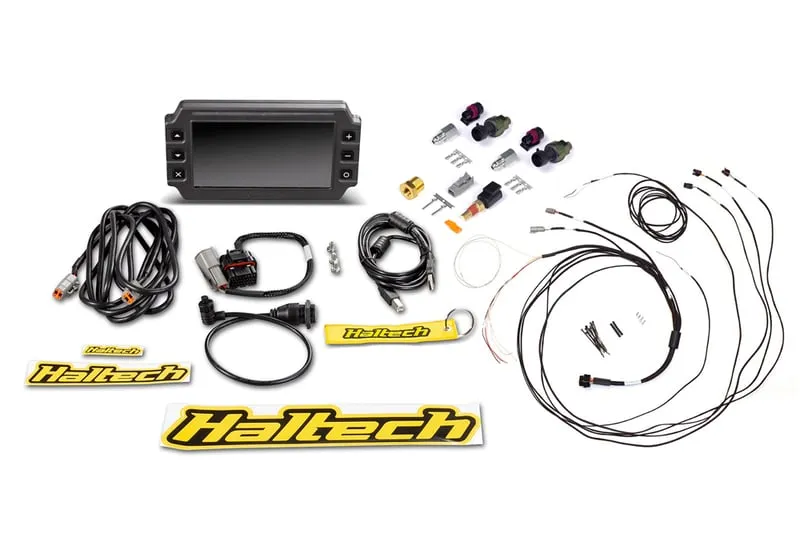

Includes: 1 x Haltech iC-7 Dash. 1 x iC-7 Semi Terminated Harness. 1 x 1/8 NPT Coolant Temperature Sensor. 2 x 0-150 Psi Fuel/Oil Pressure Sensors. 1 x 3/8NPTF to 1/8NPTF Adaptor.
