Are you looking for a rock-solid digital snake system that's both lightweight and ultra-fast?

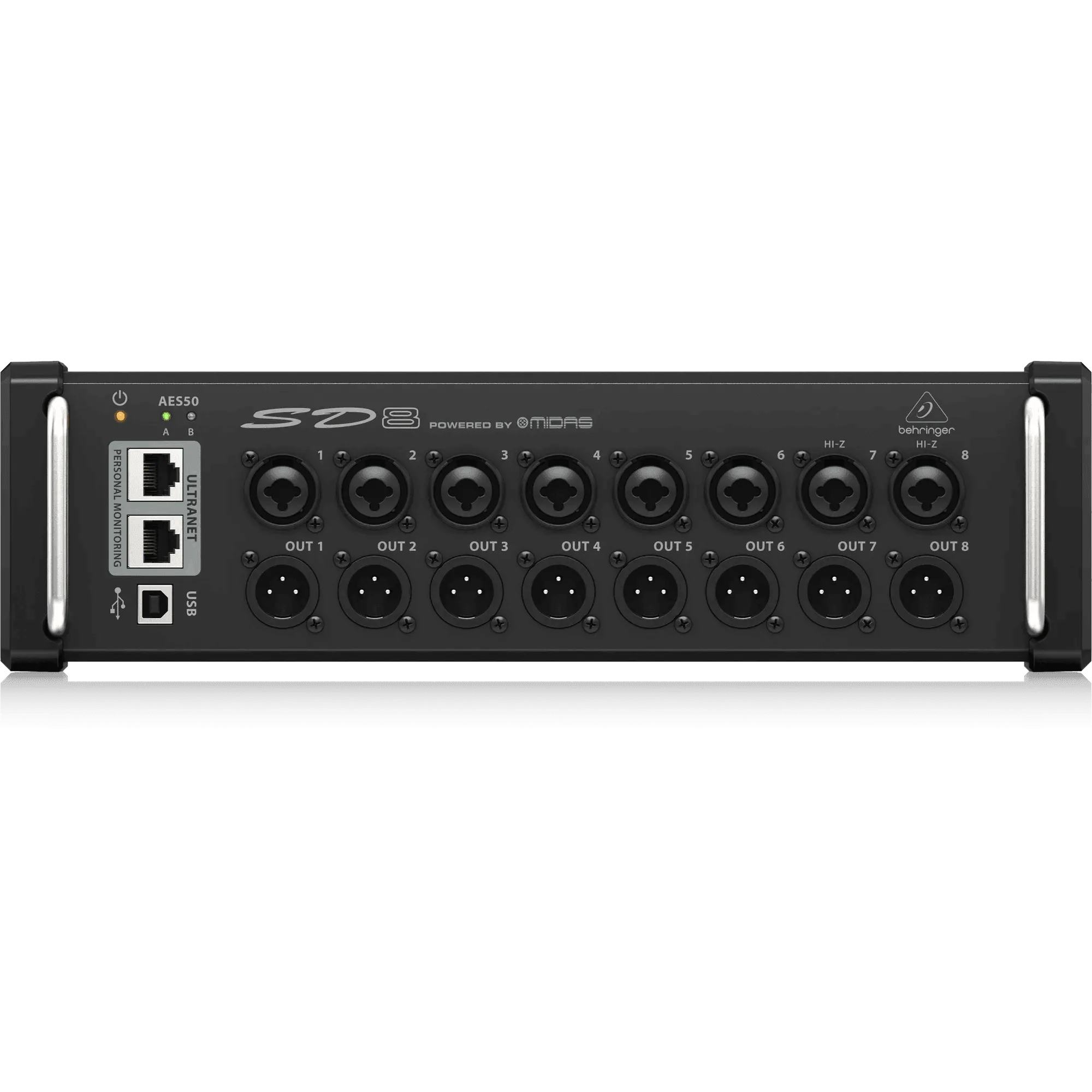

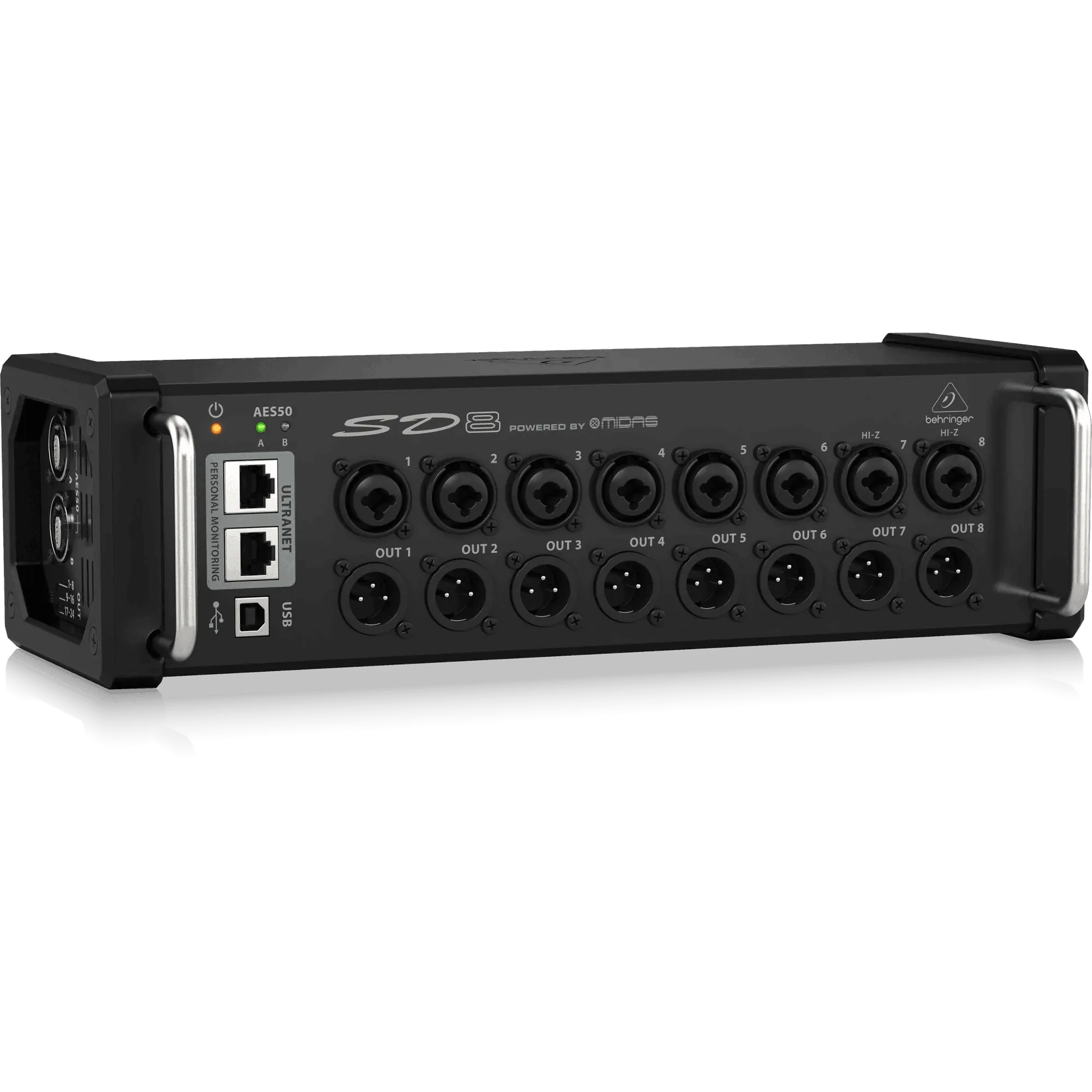

The Behringer SD8 8-channel digital snake system is the perfect solution! With 8 fully programmable and remote-controllable Midas-designed mic preamps, 8 analog, servo-balanced XLR outputs, AES50 network ports featuring Klark Teknik SuperMac technology, and Ultranet connectivity for Behringer's Powerplay P16 Personal Monitoring System, the SD8 is the ideal choice for live sound applications. Plus, dual AES50 ports let you cascade multiple units, without a merger or a router. And with a USB connector for system updates via PC, rack ears and protection bumpers included for installed and mobile applications, and an ultra-compact, roadworthy, all-steel chassis, the Behringer SD8 is ready to take your live sound to the next level.
KEY FEATURES:
- 8 x fully programmable and remote-controllable Midas-designed mic preamps give you exceptional sound, right from the stage
- 8 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
- AES50 network ports featuring Klark Teknik SuperMac technology, providing you with ultra-low latency digital audio that's in-ear compatible
- Ultranet connectivity for Behringer's Powerplay P16 Personal Monitoring System is perfect for in-ear applications
- Digital audio and control connectivity for Turbosound IQ speaker systems with Ultranet networking capability

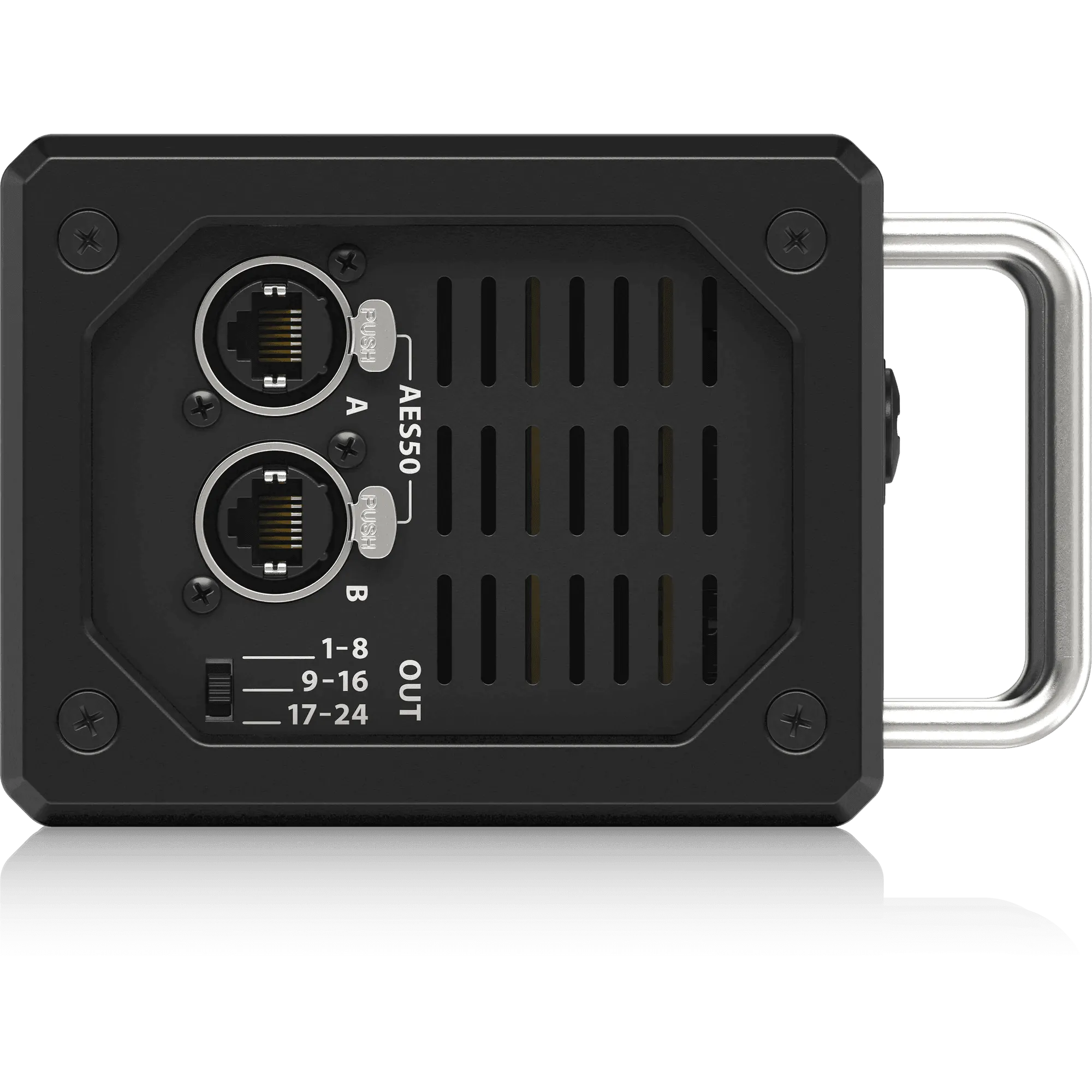

- Dual AES50 ports let you cascade multiple units, without a merger or a router
- Up to 168' of networking capability via a single lightweight CAT-5e cable (not included)
- USB connector for system updates via PC
- Rack ears and protection bumpers included for installed and mobile applications
- Ultra-compact and roadworthy, all-steel chassis
SPECIFICATIONS:
- Type: Digital Stage Box
- Channels: 8
- Inputs - Mic Preamps: 6 x XLR-1/4" combo (mic/line), 2 x XLR-1/4" combo (mic/line/hi-Z)
- Phantom Power: Yes
- Outputs - Main: 8 x XLR
- Data I/O: 2 x AES50, 2 x Ultranet
- USB: 1 x Type B
- Computer Connectivity: USB
- Rackmountable: Yes
- Power Source: Standard IEC AC cable
- Height: 3.7"
- Depth: 5.9"
- Width: 13.1"
- Weight: 5.5 lbs.
HOW IT WORKS:
1. Plug your mic or line-level signals into the 6 x XLR-1/4" combo inputs.
2. Connect your monitor mixes to the 8 x XLR outputs.
3. Connect the SD8 to your audio system via the AES50 and Ultranet ports.
4. Use the USB connector to update the system via PC.
PRODUCT FAQ:
Q: Does the SD8 have phantom power?
A: Yes, the SD8 has built-in phantom power for condenser mics.
Q: Can I cascade multiple SD8 units?
A: Yes, the SD8 has dual AES50 ports that let you cascade multiple units, without a merger or a router.
Q: Is the SD8 suitable for mobile applications?
A: Yes, the SD8 comes with rack ears and protection bumpers included for installed and mobile applications.
